PX3 W Black

PX3 W Black

slicing and packaging line

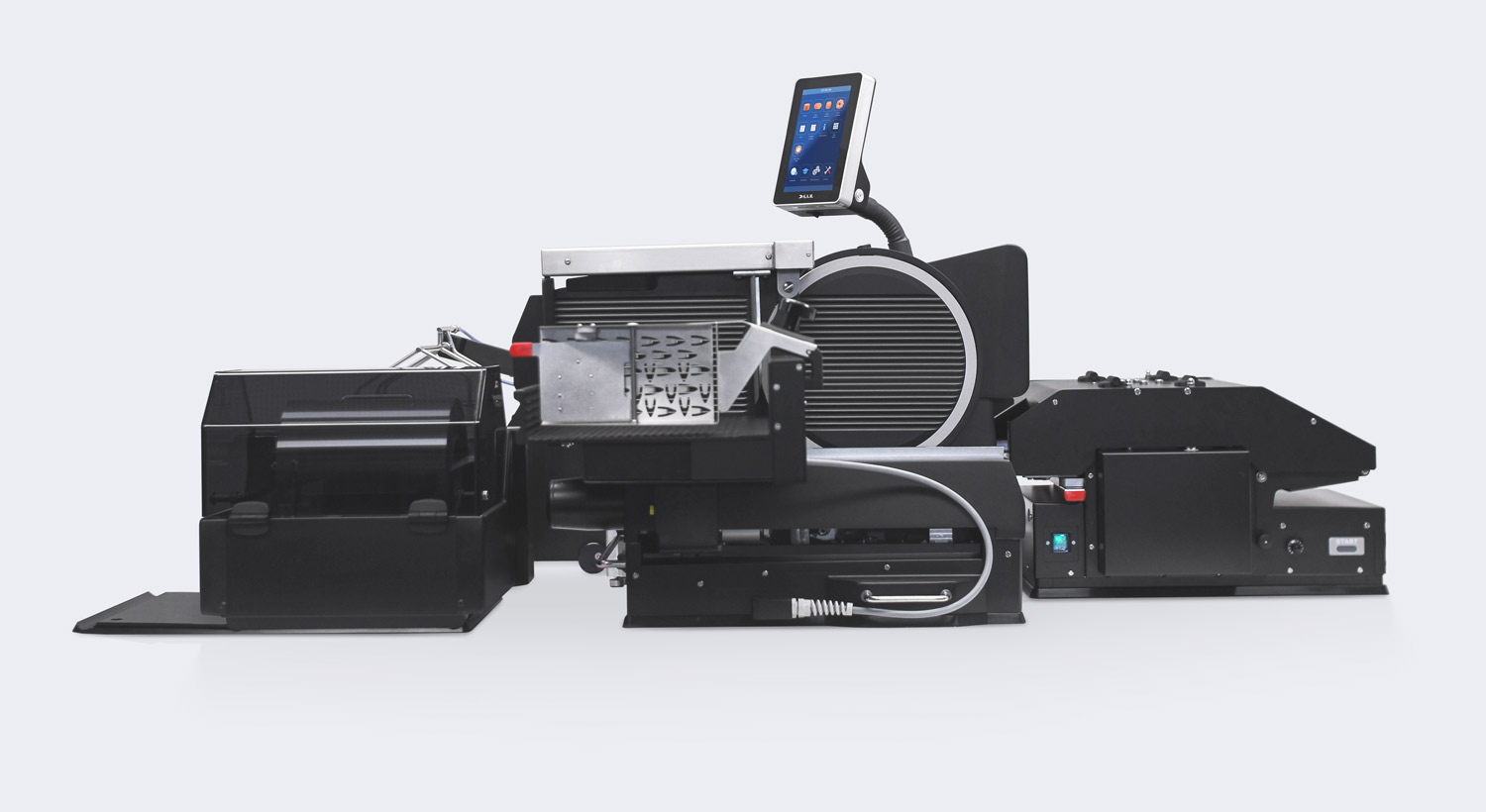

SAM PX3W Black we b
THE SAMPAK FACTORY

Fully automated serial production of fresh, ready-to-serve cold cuts in multi-layer SamPaks at touch of a button. The customer receives genuine freshness for self-extraction and as a matter of fact, for the first time truly fresh cold cuts without any idle time. SamPaks provide additional purchasing incentives and therefore enhance customer loyalty. Touch terminal furthermore facilitates networking and data exchange with MMS. Two packaging formats in one device (21 x 21 and 21 x 26 cm). Individual target weights or prices can be set for the SamPaks in large quantities (150/h). Unique in the world. Substantial time saving compared to model PX3 W by PAZ: 25%.

The matt black paint not only makes the machine easy to clean, but also makes the PX3W Black a real eye-catcher for your fine food department.

ADVANTAGES

SamPak (21 x 21 & 26 x 21 cm, max. height 18 mm)

fully networkable

user friendly touch

hygienic black paint

serial production: 150 SamPaks/h

target price or target weight

ready for online-shops

SAM PX3W Black we b

slicing

depositing

packing

Detailed images

X3. + Robo Packer IMAGEFILM

RX3 mettler paz master red

X3. + Robo Packer IMAGEFILM

X3. + Robo Packer IMAGEFILM

RX3 mettler paz master red

X3. + Robo Packer IMAGEFILM

SPECIFICATIONS

PX3 W + PAZ-Mettler
DIMENSIONS

2300 x 1010 x 730 MM

DIAMETER OF BLADE

300 MM

SLICING THICKNESS

0,5 - 7 MM

MAX. PRODUCT SIZE

○ 150 MM | □ 220 x 150 MM

LAYOUT OPTIONS

CROSS | LENGHTWISE| STACK | ROUND

PLU

1 MILLION

PX3 iSLICE & PAK 4.0



SLICING SPEED

30 - 55 SLICES / min.

CAPACITY

150 SAMPAK / h

MAX. SAMPAK HEIGHT

18 MM

SAMPAK FORMAT

210 x 210 MM and 210 x 260 MM

MAX. PRODUCT FEED

400 MM

PRODUCT CONTENT
S.A.M. PX3

LIGHT SGW

S.A.M. FOIL DISPENSER

S.A.M. CLEAN

S.A.M. PAZ METTLER

DIAMOND GRINDER

BLADE REMOVER + PREPARATION

S.A.M. AIR UNIT

S.A.M. INTERLEAVER

SMART TOUCH TERMINAL (ANDROID)

S.A.M. WELDING STATION

CONVEYOR BELT (WITCH SCALE)

DOWNLOAD
TECHNICAL DATA SHEET

FEATURES

sam feature icon atc 1v1
ATC

Automatic cutting thickness adjustment

Rest Holder

Allows cutting to the last slice

Knifestop

The knife only runs during the cutting process

QuickPak-App

Weight- and Price-Presets possible

sam feature icon lightsgw 1v1
light SGW

Ergonomic, in all functions fully automatic slicer with SamClean coating

sam feature icon schnittgeschwindigkeit 1v1
Variable Slicing Speed

30 - 55 Slices/min

SAMCLEAN COATING

Prevents the sticking of cheese

Touch

4 STORAGE VARIANTS

Vertical-, horizontal-, stack- and circular stacking

PLU

Storable

sam feature icon fernwartung 1v1
Fernwartung

Integrated fault diagnosis via sensor check

RESTful API

CE

Device complies with CE safety and hygiene regulations

EASY TO USE

SMART TOUCH TABLET

An android-based touch tablet forms the basis for the simple operation of the machine. symbols enable intuitive operation. The training effort is correspondingly low.

001
002
003
004
tastatur 1v3 red
ADVANTAGES AT A GLANCE
1 MILLION PLUS STORABLE

RESTFUL API

AUTOMATIC PROCESSING OF JOB ORDERS

WEB SHOP/E-COMMERCE - CONNECTION POSSIBLE

PLU DATA MAINTENANCE (BACKUP & RESTORE)

EVALUATION OF SLICING DATA

EVALUATION OF STATISTICS

REMOTE MAINTENANCE AND INTEGRATED FAULT DIAGNOSIS VIA SENSOR CHECK

GRINDING APP WITH OPERATOR GUIDANCE

PROCESS ONLINE ORDERS AUTOMATICALLY

THE FUTURE OF ONLINE
SHOPPING IS NOW!

Already today it is possible to order Fresh food like sausage and cheese online and get it delivered to your home a short time later, FRESHly sliced. The unique hygienic packaging, SamPak®, offers the ideal conditions for this.

ecommerce 1v1

The full networking capable S.A.M. Series X opens up unlimited possibilities in e-commerce. Dispatch or pre-order for pick-up? No problem.



S.A.M. Series X accept online orders directly via RESTful interface at the time of dispatch. The machine informs the operator of the material to be sliced and independently takes over all further work steps (cutting, depositing, packaging, labelling).

NEUE MÖGLICHKEITEN DES BESTELLENS

S.A.M. KIOSK

Durch die intelligente Vernetzung der S.A.M. Serie X werden neue Möglichkeiten im Frischeverkauf wahr!



Wir haben einen neuen Weg des Bestellens im Supermarkt geschaffen. Ein benutzerfreundlicher Touch-Bildschirm dient dem Kunden als Bestellplattform. Hier kann er frische Aufschnitte (Wurst, Schinken, Käse) kinderleicht bestellen. Durch Ausgabe eines Bons kann der Konsument die Wartezeit entspannt für ein weiteres Einkaufserlebnis im Shop nützen, ohne minutenlang an der Theke zu warten.

QUICKPACK
APP

TIME SAVING FOR
CUSTOMER SERVICE

A revolution of the service counter! Simply select the target price or target weight and the machine takes care of the rest – fully automatically! Time for customer dialogue.

Fill your counters with SamPaks
sampak breakfast 1v1 1

The unique packaging preserves the aroma and freshness of the cold cuts for several days.

SamPaks are packed in separate layers. Each layer is immediately protected. Even the consumption of one layer does not reduce the protection and shelf life of the others.

THE SLICING
EXPERIENCE

Slice & Pak

The ultimate in production. Harvest SamPaks ready for sale at the touch of a button.

INNOVATION &
QUALITY

IN-HOUSE PRODUCTION

All S.A.M. devices are manufactured exclusively in our factory in Klagenfurt/Austria by highly qualified employees. High vertical range of manufacture, precision and experience lead to the worldwide recognized quality product.



With more than 500 patents, the in-house development company has been setting the direction for slicing machines, slicing systems and packaging equipment for fresh cold cuts in the entire industry for decades. Performance, user-friendliness, ergonomics, safety and the technical implementation of new sales concepts in the food trade are the focus.
